Adjustable Ringlock Scaffolding System Q345 Hot Dipped Galvanized Coated

Name: Adjustable Ringlock Scaffolding System Q345 Hot Dipped Galvanized Coated
Brand: BOYOUN
Price: 1 USD

Quality Adjustable Ringlock Scaffolding System Q345 Hot Dipped Galvanized Coated for sale

Place of Origin : Shandong, China

Brand Name : BOYOUN

Model Number : Scaffolding System

Supply Ability : 60000 Ton/Tons per Year

Packaging Details : Standard or according to customer's requirement.

MOQ : 50 Ton/Tons

Price : Negotiable

Certification : SGS; ISO

Material : Q235 Steel

Application : Building Construction

Color : Customer Requirements

Certificate : ISO9001

Surface treatment : Galvanized

Type : Scaffolding Cuplock System

Standard : Standard or according to your requirement

Surface : Galvanized Coated

Usage : Building Project

MOQ : 50 TONS

Port : Tianjin/Qingdao

Contact Now

Widely used Q345 hot dipped galvanized adjustable construction building scaffolding tube

PRODUCT DESCRIPTION

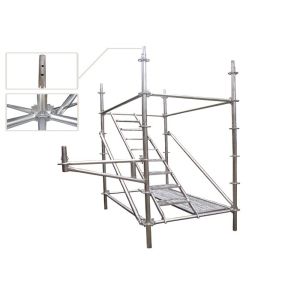

Scaffolding system
1. Hydraulic Scaffolding Ringlock Standard

Ringlock scaffolding standard is made of Q235 steel tube, OD is 48mm, thickness is 3.0mm, surface can be hot dip galvanized or powder coated.

The drop forged rosettes of ringlock scaffolding are welded on standard every 500mm, which is international standard. Each rosette have 8 holes, including 4 large holes and 4 small holes. so ringlock scaffolding allow the legers and standards are not at right angle. which means the ringlock scaffolding can be used for any shape of building.

Connect pin can be adjustable or fixed on standards, as you like.

2. Hydraulic Scaffolding Ringlock Ledger

The ledger blade is drop forged, and strong welded at the end of ledger. ledger blade has lock pin, which can lock the ledgers on rosette, and the lock pin are also fixed on the blade and will not come out, so you don't worry about it will lost.

3. Hydraulic Scaffolding Ringlock Diagonal Brace

The ringlock scaffolding cross brace is used for stable the whole system, which is according to trangle theory.

4. Hydraulic Scaffolding Ringlock Plank

Ringlock scaffolding plank is made of Q345B steel sheet, which has skid-risistant and waterproof surface. At the end of plank, hooks are welded to make plank lock on scaffolding ledgers.

5. Hydraulic Scaffolding Ringlock Jack Base

Jack base can be solid or hollow, surface can be powder coated or hot dip galvanized, ringlock scaffolding jack base is used for stable the whole system and make sure all scaffolding standards are at the same horizontal plane, and it also can disperse the loading of standards.

All-in-one solution

Professional solution for each project

Prompt offer with competitive price

Process every unique project for client

Formwork instructors

The Boyoun formwork instructors are specially trained and experienced practitioners who know how to install

FAQ

1. Where is your factory?

Our factory is located in Binzhou city, Shandong province, where is 350km far from Beijing, 240km far from Tianjin port. Our sales office is located in Beijing city.

2. How fast can my order be delivered?

You can state your desired Delivery date for your order. The order and the desired delivery date will be checked after your order got sent.
When you receive your order confirmation, you will find the information on your final delivery date (outgoing). We will, of course, try our best to meet the specified delivery date.

3. What's the material of your products?

Steel Q235B or Q345B.
